NixOS on ARM/PINE64 ROCKPro64

From NixOS Wiki
(Redirected from NixOS on ARM/PINE RockPRO64)
PINE64 ROCKPro64

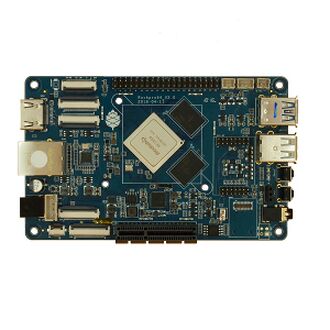

A PINE64 ROCKPro64.
Manufacturer PINE64 (Pine Microsystems Inc.)
Architecture AArch64
Bootloader Upstream U-Boot
Boot options microSD, eMMC, SPI NOR Flash

The ROCKPro64 is a powerful single board computer built around the Rockchip RK3399 SoC.

There are two models of the board, with 2 or 4 GB of RAM. It can boot from an microSD card or an eMMC. It also has a 128 Mbit SPI flash that can be used to store the bootloader.

Status

This board has upstream U-Boot and kernel support, although the mainline kernel may still be missing some features. NixOS can be installed using manual partitioning and nixos-install or by modifying the aarch64 installation image as described in the next section.

U-Boot for this board is packaged in nixpkgs, and Hydra builds can be found here: https://hydra.nixos.org/job/nixpkgs/trunk/ubootRockPro64.aarch64-linux

It can also be cross compiled with

nix-build '<nixpkgs>' --argstr system aarch64-linux -A ubootRockPro64 --out-link ubootRockPro64

Board-specific installation notes

You can use nixos-aarch64-images to get an rockpro64 compatible disk image or running the commands manually as described below:

U-Boot needs to be copied to specific sectors on the microSD card, eMMC or image with dd. Download/build U-Boot for the board, and write idbloader.img and u-boot.itb to the correct locations with (replace /dev/mmcblkX with the correct path to the card or image):

dd if=idbloader.img of=/dev/mmcblkX conv=fsync,notrunc bs=512 seek=64
dd if=u-boot.itb of=/dev/mmcblkX conv=fsync,notrunc bs=512 seek=16384
Note: Prior to NixOS 20.03, a downstream version of U-Boot 2017.09 was packaged, which placed U-Boot in a single idbloader.img file. If that version is used, simply disregard the second command above.

On many kernels, the ethernet driver cannot handle hardware check-summing of large packets, therefore this feature must be disabled for the ethernet to be stable. This can be done with the following NixOS configuration:

networking.localCommands = ''
  ${pkgs.ethtool}/bin/ethtool -K eth0 rx off tx off
'';

Serial console

Note: Do not connect RxD (pin 10) until the U-Boot SPL is running (see [RK3399 boot sequence

The ROCKPro64 uses a GPIO pinout compatible with the Raspberry Pi 2 and newer. This means that the following pins can be used to connect a serial adapter:

Pi-2 Bus
Pin Function
6 GND
8 UART0_TX
10 UART0_RX

See https://wiki.pine64.org/wiki/ROCKPro64#GPIO_Pins for list of all pins

The serial console runs at 1500000 baud in the bootloader.

To connect check your dmesg for an identifier of the serial console:

[78635.965459] usb 2-1: new full-speed USB device number 8 using xhci_hcd
[78636.119008] usb 2-1: New USB device found, idVendor=1a86, idProduct=7523, bcdDevice= 2.63
[78636.119017] usb 2-1: New USB device strings: Mfr=0, Product=2, SerialNumber=0
[78636.119022] usb 2-1: Product: USB2.0-Serial
[78636.127103] ch341 2-1:1.0: ch341-uart converter detected
[78636.142043] usb 2-1: ch341-uart converter now attached to ttyUSB0

In our example that coresponds to the ttyUSB0 which makes a new device available at /dev/ttyUSB0 to which you can connect using for (example) picocom:

# Connect to /dev/ttyUSB0 at baud 1500000
$ nix-shell -p picocom --run "picocom /dev/ttyUSB0 -b 1500000"

See https://wiki.pine64.org/wiki/ROCKPro64#Setup_a_Serial_Console_.28UART.29 for more information on setting up the serial console
