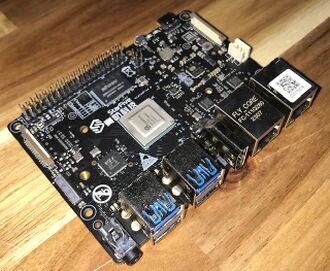

The VisionFive 2 is a single board computer (SBC) that uses a RISC-V processor with an integrated GPU. It supports Linux operating system and various multimedia features, such as 4K video decoding and OpenGL ES 3.212.

Status

See https://rvspace.org/en/project/JH7110_Upstream_Plan for an overview of which features are already supported by the latest mainline kernel used by NixOS.

Please note that HDMI display patches haven't been merged yet.

Setup

VisionFive 2
Manufacturer	StarFive
Architecture	RISC-V
Bootloader	Custom or UEFI
Boot order	Configurable; SD, USB, Netboot
Maintainer	onny
VisionFive 2
SoC	JH7110

Precompiled SD-card images can be found on the Hydra instance my NickCao. Before flashing the image, use unzstd to unpack the downloaded archive.

Manually build a SD-card image

First create this Flake file

flake.nix

{
  inputs.nixpkgs.url = "nixpkgs/nixos-24.11";
  inputs.nixos-hardware.url = "github:nixos/nixos-hardware";

  # Some dependencies of this flake are not yet available on non linux systems
  inputs.systems.url = "github:nix-systems/x86_64-linux";
  inputs.flake-utils.url = "github:numtide/flake-utils";
  inputs.flake-utils.inputs.systems.follows = "systems";

  outputs = { self, nixpkgs, nixos-hardware, flake-utils, ... }:
    flake-utils.lib.eachDefaultSystem (system:
      rec {
        packages.default = packages.sd-image;
        packages.sd-image = (import "${nixpkgs}/nixos" {
          configuration =
            { config, ... }: {
              imports = [
                "${nixos-hardware}/starfive/visionfive/v2/sd-image-installer.nix"
              ];

              # If you want to use ssh set a password
              users.users.nixos.password = "test123";
              # OR add your public ssh key
              # users.users.nixos.openssh.authorizedKeys.keys = [ "ssh-rsa ..." ];

              # AND configure networking
              networking.interfaces.end0.useDHCP = true;
              networking.interfaces.end1.useDHCP = true;

              # Additional configuration goes here

              sdImage.compressImage = false;

              nixpkgs.crossSystem = {
                config = "riscv64-unknown-linux-gnu";
                system = "riscv64-linux";
              };

              system.stateVersion = "24.11";
            };
          inherit system;
        }).config.system.build.sdImage;
      });
}

It might be helpful to add third-party binary cache configuration to this system configuration.

Run following command to build the SD-card image

nix build .#

Flashing the image

After successfull build or unpack, flash the resulting file (build file is in the directory results/sd-image) to the target device such as a NVME SSD or in this example the SD-card (/dev/mmcblk*). Note that everything on the target device gets erased.

dd if=result/sd-image/nixos-sd-image-23.11pre-git-riscv64-linux-starfive-visionfive2.img of=/dev/mmcblk0 status=progress

Usage

The board has "boot mode pins", from which we can control what device should be booted from.

See official documentation https://doc-en.rvspace.org/VisionFive2/Quick_Start_Guide/VisionFive2_SDK_QSG/boot_mode_settings.html .

First enable booting from SD-card or NVME SSD by setting jumper 1 and 2 to "FLASH/QSPI mode" (both QSPI and SDIO mode support booting from an SD card):

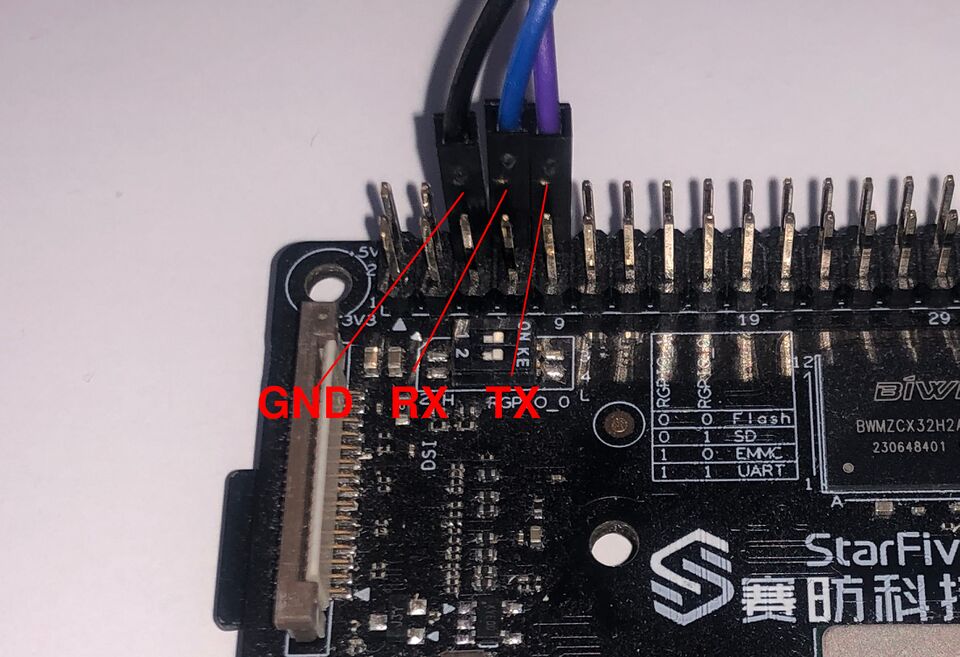

For UART access, wire GND (black), RX (blue) and TX (purple) to your adapter

Update board firmware

sudo visionfive2-firmware-update-flash

Bootstrap NixOS system configuration at /etc/nixos/configuration.nix

nixos-generate-config

It is recommended to configure third-party binary caches to speed up build times.

Tips and tricks

Using the Visionfive 2 as a remote builder to build native RISCV packages for e.g. the Visionfive 2

Building an NixOS system image that can be flashed to an SD card or NVMe SSD requires to build RISCV binaries, more specifically for the "riscv64-linux"platform. From a typical Intel/AMD computer we can either

emulated native compile using QEMU virtualization by enabling the binfmt kernel feature on NixOS configuration setting boot.binfmt.emulatedSystems = [ "riscv64-linux" ];). This can be fast if everything is downloaded pre-compiled from the cache.nixos.org cache (not supported yet though) and only few packages really need local compilation. In reality it can be extremely slow, e.g. compiling a Linux kernel alone can take days.
cross-compile to RISCV from another (e.g. "x86_64-linux) machine using the setup in the example above. However very few packages will be cached from cache.nixos.org as cross-compiled packages are less likely to be pre-build than native compiled. So the compile itself is fast but there will be a lot more to compile locally. In practice this can be quite fragile, because you may encounter packages that don't really support cross-compilation get stuck.
native compile on an remote builder like the Visionfive 2 itself running its custom Debian Linux at the beginning or later NixOS. This is quite simple to setup and reasonably fast as most packages can be pre-build and cached on cache.nixos.org, and building a remaining Linux kernel only takes 3h on the Visionfive 2.

Setting up the Visionfive 2 as a remote native builder can be done following the steps at https://wiki.nixos.org/wiki/Distributed_build. The rough steps are as follows:

Install the Nix package manager on Visionfive 2 Debian OS the normal, multi-user way with sh <(curl -L https://nixos.org/nix/install) --daemon. If you already have NixOS running on the Visionfive 2, then you can skip this step.
Setup a ssh connection from your local machine to the Visionfive 2, especially adding SetEnv PATH=/nix/var/nix/profiles/default/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin to the Pi's /etc/ssh/sshd_config file. If you already have NixOS running on the Visionfive 2, then you can skip this step.
Make the remote Visionfive 2 known to you local computer by adding it as a nix.buildMachines entry to your /etc/nix/configuration.nix file and use connection protocol ssh-ng(!).
You can then build, e.g. an NixOS sd card image with a call similar to nix build .\#nixosConfigurations.visionfive2.config.system.build.sdImage
flash that resulting image onto an SD card or NVMe SSD using a call similar to zstdcat result/sd-image/nixos-sd-image-23.11.20230703.ea4c80b-riscv64-linux.img.zst | sudo dd of=/dev/mmcblk0 bs=100M status=progress and place that card into the Visionfive 2.

Deploy and Update the Visionfive 2 NixOS system once it's running NixOS

Once the Pi 5 is running NixOS, you can update it with newer NixOS system configurations using e.g. the usual nix-rebuild

tool with a call similar to

nixos-rebuild --flake .#visionfive2 --build-host piuser@visionfive2 --target-host piuser@visionfive2 --use-remote-sudo switch

that uses the SSH connection from the remote builder section.

See this guide for a good explanation of this terminal call.
